| Место происхождения: | Китай |
| Фирменное наименование: | Ziitek |
| Сертификация: | UL & RoHS |
| Номер модели: | ТИФ200-30-25С |
| Количество мин заказа: | 1000 шт. |
|---|---|
| Цена: | 0.1-10 USD/PCS |
| Упаковывая детали: | Коробки 24*13*12 см |
| Время доставки: | 3-5 рабочих дней |
| Условия оплаты: | Т/Т |
| Поставка способности: | 1000000 ПК/месяц |
| Название продукта: | Мягкая термальная пусковая площадка множественной толщины термально проводящая силиконовая подушка д | Диэлектрическая постоянная: | 4,5 МГц |
|---|---|---|---|
| Ключевые слова: | Мягкие термопрокладки. | образец: | Образец бесплатно |
| Теплопроводность: | 3.0W/m-K | Диапазон толщины: | 0,010–0,200 дюйма (0,25–5,0 мм) |
| Цвет: | Розовый/светло-розовый | Рейтинг пожарной безопасности: | 94 V0 |
| Напряжение пробоя (В/мм)): | ≥5500 VAC | Приложение: | электрические продукты |

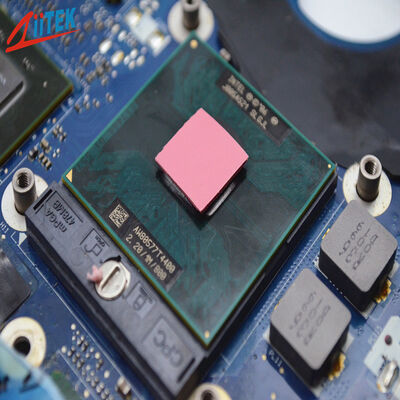

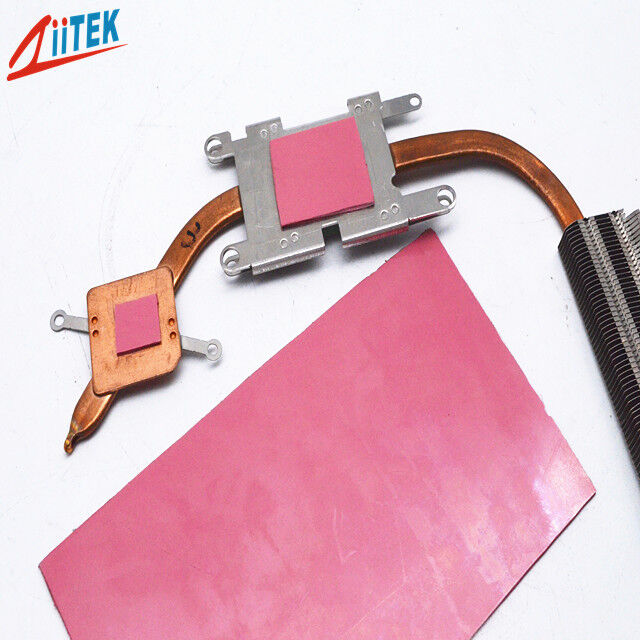

Multiple Thickness Soft Thermal Pad Thermally Conductive Silicone Pad For Automotive Batteries
Company Profile
Ziitek Electronic Material and Technology Ltd. is dedicated to developing composite thermal solution and manufacturing superior thermal interface materials for competitive market. Our vast experience allows us to assist our customers best in thermal engineering field.We serve customers with customized products, full product lines and flexible production, which makes us be the best and reliable partner of you. Let's make your design more perfect!
The TIF®200-30-25S Series is a compound thermal interface material that combines good thermal conductivity, reliable electrical insulation,and soft characteristics. This product not only provides excellent thermal conductivity but also ensures superior breakdownvoltage strength, effectively preventing circuit short circuits. Its soft characteristic allows it to fully fill uneven interfaces,providing excellent cushioning protection for precision components while dissipating heat. This series is an ideal choice for applications requiring electrical isolation, such as power devices, new energy vehicles, and portable electronic devices.
Features
> Good thermal conductive: 3.0W/mK
> Good softness and fillability
> Self-adhesive without the need for additional surface adhesives
> Good insulation performance
> Puncture-resistant, tear-resistant, and scratch-resistant performance
> RoHS compliant
> UL recognized
> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Motherboard chip
> Radiator
> AI Processors AI Servers
> Power Electronics
> Automotive Electronics
> Consumer Electronics
| Typical Properties of TIF®200-30-25S Series | |||
| Property | Value | Test method | |
| Color | Pink/Light Pink | Visual | |
| Construction & Compostion | Ceramic filled silicone elastomer | - | |
| Density(g/cm³) | 3.0 | ASTM D792 | |
| Thickness Range(inch/mm) | 0.010~0.020 | 0.030~0.200 | ASTM D374 |
| (0.25~0.50) | (0.75~5.00) | ||
| Hardness | 45 Shore 00 | 45 Shore 00 | ASTM 2240 |
| Recommended Operating Temperature | -40 to 200℃ | - | |
| Breakdown Voltage(V/mm) | ≥5500 | ASTM D149 | |
| Dielectric Constant | 4.5 MHz | ASTM D150 | |
| Volume Resistivity | >1.0X1012 Ohm-meter | ASTM D257 | |
| Flame rating | V-0 | UL 94 (E331100) | |
| Thermal conductivity | 3.0 W/m-K | ASTM D5470 | |
| 3.0 W/m-K | ISO22007 | ||
Product Specification
Product Thicknesses: 0.010"(0.25mm)~ 0.200" (5.00mm) with increments of 0.010"(0.25mm).
Product Sizes: 16" x 16" (406mm x 406mm)
Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).
The TIF® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.
![]()
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
