Место происхождения: | КИТАЙ |
Фирменное наименование: | Ziitek |
Сертификация: | UL & RoHS |
Номер модели: | ТИФ100-05У |
Количество мин заказа: | 1000 шт |
---|---|
Цена: | 0.1-10 USD/PCS |
Упаковывая детали: | 24*13*12 см коробки |
Время доставки: | 3-5 рабочих дней |
Условия оплаты: | T/T. |
Поставка способности: | 1000000 ПК/месяц |
Название продуктов: | 1,5 Вт/м. K Силиконовая термопрокладка Производитель Прямая продажа Высокотемпературная термопроклад | Ключевые слова: | Тепловая площадка |
---|---|---|---|
Образец: | Образец бесплатно | Диапазон толщины: | 0,010–0,200 дюйма (0,25–5,0 мм) |
Пожарный рейтинг: | 94 V0 | Цвет: | Синий |
Диэлектрическая постоянная: | 40,5 МГц | Теплопроводность: | 1,5 Вт/м-К |
Напряжение диэлектрического срыва: | > 5500 вак | Приложение: | Коммуникационное и сетевое оборудование |

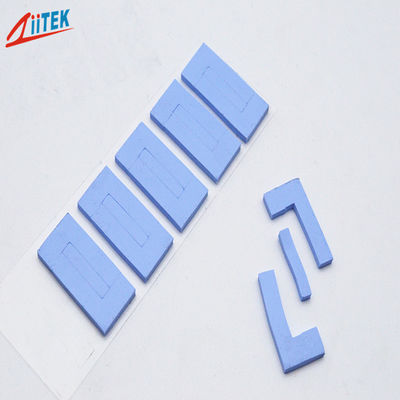

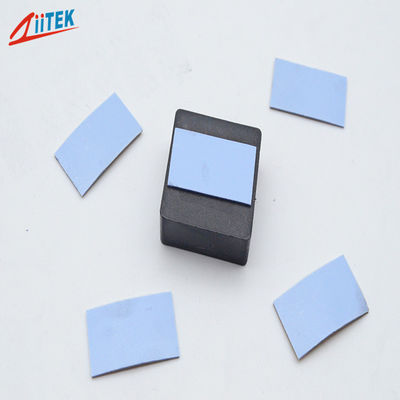

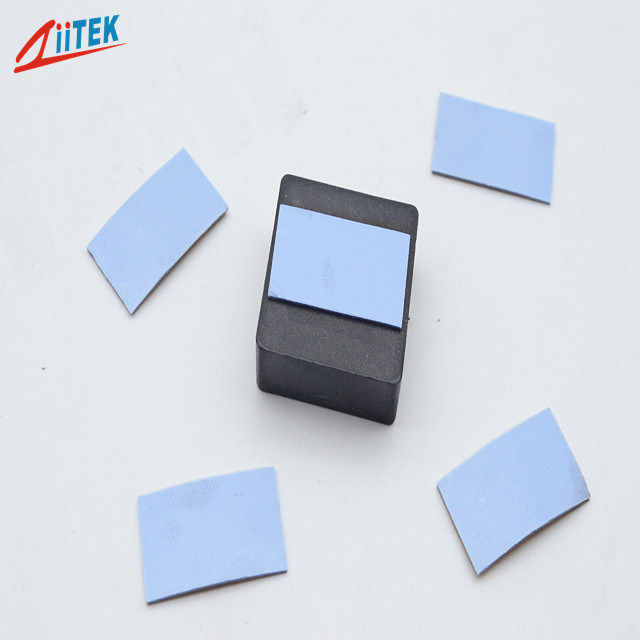

1.5W/M. K Silicone Thermal Pad Manufacturer Direct Sale High Temperature Thermal Pad For Communication And Network Equipment
Company Profile
Ziitek company is a high-tech enterprise which dedicated to the R&D, manufacture and sales of the thermal interface materials (TIMs). We have rich experiences in this field which can support you the latest, most effective and one -step thermal management solutions. We have many advanced production equipments,full test equipments and fully automatic coating production lines which can support the production for high performance thermal silicone pad, thermal graphite sheet/ film, thermal double-sided tape, thermal insulation pad, thermal ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.
Ziitek TIF®100-05U Series is not only designed to take advantage of the gap heat transfer, to fill gaps, complete the heat transfer between heating and cooling parts, but also played insulation, damping, sealing and so on, to meet the equipment miniaturization and ultra-thin design Requirements, which is a highly technology and use, and the thickness of the wide range of applications, is also an excellent thermal conductivity filler material.
Features
> Good thermal conductive: 1.5W/mK
> Moldability for complex parts
> Soft and compressible for low stress applications
> Naturally tacky needing no further adhesive coating
> Outstanding thermal performance
> High tack surface reduces contact resistance
> RoHS compliant
Applications
> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
> CPU
> Display card
> Mass storage devices
> Automotive electronics
> Set top boxes
> Audio and video components
> IT infrastructure
Typical Properties of TIF®100-05U Series | |||
Property | Value | Test method | |
Color | Blue | ****** | |
Construction &Compostion | Ceramic filled silicone elastomer | ****** | |
Thickness range | 0.010"(0.25mm)~0.200"(5.0mm) | ASTM D374 | |
Specific Gravity | 2.3g/cc | ASTM D297 | |
Hardness | 27±5 Shore 00 | ASTM 2240 | |
Continuos Use Temp | -45 to 200℃ | ****** | |
Dielectric Breakdown Voltage | > 5500 VAC | ASTM D149 | |
Dielectric Constant | 4.5 MHz | ASTM D150 | |
Volume Resistivity | 1.0 X1012 Ohm-meter | ASTM D257 | |
Flame rating | 94 V0 | UL E331100 | |
Thermal conductivity | 1.5 W/m-K | ASTM D5470 |
Product Specification
Product Thicknesses: 0.010-inch to 0.200-inch (0.25mm to 5.0mm)
Product Sizes:8" x 16"(203mm x406mm)
Individual die cut shapes and custom thickness can be supplied, Please contact us for comfirming.
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
Ziitek Culture
Quality :
Do it right the first time, total quality control
Effectiveness:
Work precisely and thoroughly for effectiveness
Service:
Quick response, On time delivery and Excellent service
Team work:
Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.
FAQ:
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China.
Q: What kind of packaging you offer?
A: During the packaging process, preventive measures will be taken by us to assure that the goods are in a good condition during storage and delivery.
Q:Do big buyers have promotional prices?
A: Yes, if you are a big buyer in a certain area, Ziitek will provide you with promotional prices, which will help you start your business here. Buyers with long-term cooperation will have better prices.
