3.0W/mK Thermally Conductive Silicone Thermal Pad With Good Softness And Fillability For AI Processors And Electronics Cooling

3.0W/mK Thermally Conductive Silicone Thermal Pad With Good Softness And Fillability For AI Processors And Electronics Cooling

Подробная информация о продукте:
Место происхождения: Китай
Фирменное наименование: Ziitek
Сертификация: UL and RoHs
Номер модели: ТИФ100-30-06С
Документ: TIF100-30-06S_Data Sheet.pdf
Оплата и доставка Условия:
Количество мин заказа: 1000 шт.
Цена: 0.1-10 USD/PCS
Упаковывая детали: Коробка 24*13*12 см
Время доставки: 3-8 рабочих дней
Условия оплаты: Т/Т
Поставка способности: 100000 шт/месяц
контакт
Подробное описание продукта
Название продукта: 3,0 Вт/мК термопроводящая силиконовая термопрокладка с хорошей мягкостью и заполняемостью для охлажд термальное проводное: 3.0W/mK
Твердость: 65/45 Шор 00 образец: Бесплатный образец
Цвет: белый Толщина: 0,010"~0,200"/(0,25~5,0 мм)
Плотность: 30,0 г/см3 Ключевые слова: Силиконовая термопрокладка
Строительство: Силиконовый эластомер с керамическим наполнением Приложение: AI-процессоры и охлаждение электроники

3.0W/mK Thermally Conductive Silicone Thermal Pad With Good Softness And Fillability For AI Processors And Electronics Cooling

Products description


The TIF®100-30-06S Series is awell-balanced,general-purpose thermal pad.It offers high thermal conductivity and moderate hardness. This balanced design provides both excellent suface conformity and superior ease of use, making it capable of effectively transferring heat and providing basic physical protection for a wide range of electronic components. It is an ideal choice for addressing medium to high power heat dissipation needs, achieving the best balance between cost and performance.


Features

> Good thermal conductive 3.0W/mK
> Good softness and fillability
> Self-adhesive without the need for additional surface adhesives
> Good insulation performance

Applications

> Photovoltaic
> Signal communication
> New energy vehicle
> Motherboard chip
> Radiator
> AI Processors AI Servers
> Semiconductor Packaging
> Low-Altitude Aircraft
> Optical Communication Products
> 5G Base Stations
> Electric vehicle batteries
> Computer CPU/GPU Cooling
> New energy vehicle power systems

Key attributes


Typical Properties of TIF®100-30-06S Series
Property Value Test method
Color White Visual
Construction & Compostion Ceramic filled silicone elastomer ******
Density(g/cm³) 3.0 ASTM D792
Thickness Range(inch/mm) 0.010~0.020 0.030~0.200 ASTM D374
(0.25~0.50) (0.75~5.0)
Hardness (Shroe 00) 65 45 ASTM 2240
Recommended Operating Temperature -40 to 200℃ ******
Breakdown Voltage(V/mm) ≥5500 ASTM D149
Dielectric Constant@ 1MHz 5.2 ASTM D150
Volume Resistivity >1.0X1012 Ohm-meter ASTM D257
Flame rating V-0 UL 94 (E331100)
Thermal conductivity 3.0 W/m-K ASTM D5470
3.0 W/m-K ISO22007



Product Specifications


Standard Thickness: 0.010" (0.25 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16"X16" (406 mmX406 mm)

Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).

The TIF® series is available in customshapes and various forms.
For other thicknesses or more information,please contact us.

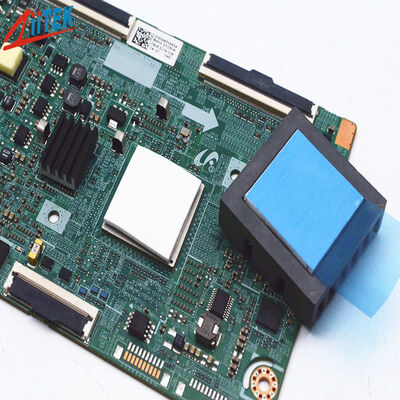

3.0W/mK Thermally Conductive Silicone Thermal Pad With Good Softness And Fillability For AI Processors And Electronics Cooling 0


Packaging Details & Lead time


The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized


Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated

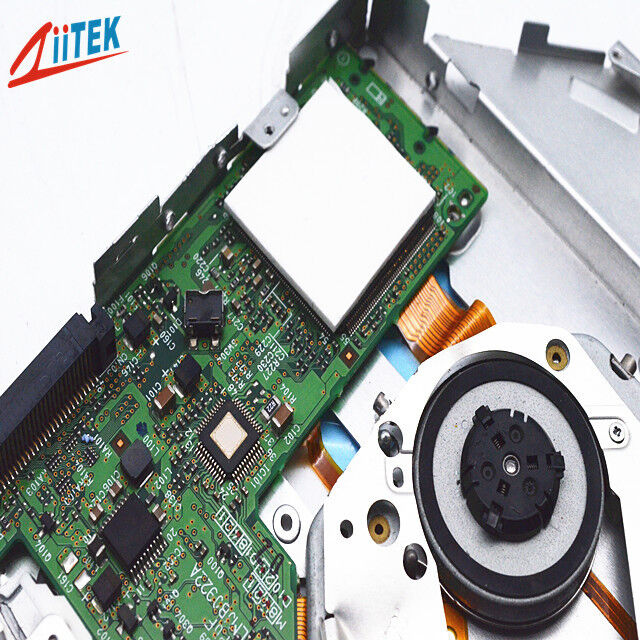

Thermal Gap Filler Offering Superior Softness and Thermal Conductivity to Enhance Cooling and Reliability of Electronic Assemblies 1

Company profile


Dongguan Ziitek Electronic Material Technology Co., Ltd. was established in 2006. Is a high-tech enterprise specializing in the research, development, production and sales of thermal interface materials. We mainly produce: heat-conducting joint filler, low melting point thermal interface materials, heat-conducting insulator, heat-conducting adhesive tape, heat-conducting interface pad and heat-conducting grease, heat-conducting plastic, silicone rubber, silicone rubber foam, etc. We adhere to the business philosophy of "survival by quality, development by quality", and continue to provide the most efficient and best service for new and old customers with excellent quality in the spirit of rigor, pragmatism and innovation.


Factory Size:8000~10,000 square meters

Factory Country/Region:No.12, Xiju Road, Hengli Township, Dongguan City, Guangdong Province, P.R.China

Online-service : 12 hours , Inquiry reply within fastest.
Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).


Well-trained & experienced staff are to answer all your inquiries in English of course.

Standard Export Carton Or Marked With Customer's Information Or Customized.

Provide free samples


After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.

we will help you to deal with it and give you satisfactory solution.


Ziitek Culture


Quality :

Do it right the first time, total quality control

Effectiveness:

Work precisely and thoroughly for effectiveness

Service:

Quick response, On time delivery and Excellent service

Team work:

Complete  teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.

Thermal Gap Filler Offering Superior Softness and Thermal Conductivity to Enhance Cooling and Reliability of Electronic Assemblies 2
