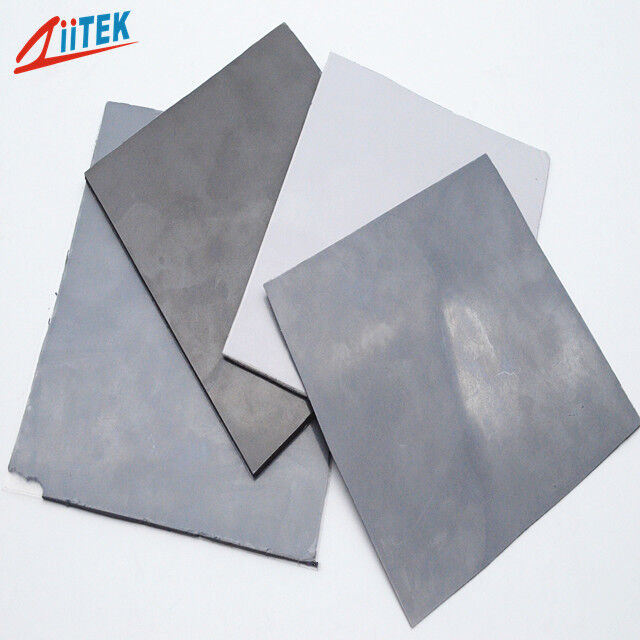

High Reliability And Stability Thermal Conductive Gap Filler Pads Ideal For Heat Dissipation In Electronic And Industrial Equipment

High Reliability And Stability Thermal Conductive Gap Filler Pads Ideal For Heat Dissipation In Electronic And Industrial Equipment

Подробная информация о продукте:
Место происхождения: Китай
Фирменное наименование: Ziitek
Сертификация: UL and RoHs
Номер модели: ТИФ100-65-11US
Документ: TIF100-65-11US_Data Sheet .... ..pdf
Оплата и доставка Условия:
Количество мин заказа: 1000 шт.
Цена: 0.1-10 USD/PCS
Упаковывая детали: Коробка 24*13*12 см
Время доставки: 3-8 рабочих дней
Условия оплаты: Т/Т
Поставка способности: 100000 шт/месяц
контакт
Подробное описание продукта
Название продукта: Высокая надежность и стабильность. Теплопроводные наполнители зазоров. Идеально подходят для рассеив термальное проводное: 6,5 Вт/мК
Строительство: Силиконовый эластомер с керамическим наполнением Твердость: 65/20 Шор 00
образец: Бесплатный образец Цвет: Темно-серый
Толщина: 0,010 "(0,25 мм) ~ 0,200" (5,0 мм) Плотность: 3,45 г/см³
Ключевые слова: Силиконовая термопрокладка Приложение: Для отвода тепла в электронном и промышленном оборудовании

High Reliability And Stability Thermal Conductive Gap Filler Pads Ideal For Heat Dissipation In Electronic And Industrial Equipment

Company Profile

Dongguan Ziitek Electronic Material and Technology Ltd. is a professional manufacturer of thermal interface materials with many years of industry experience. Integrating R&D, production, sales, and technical services, the company offers a comprehensive product line covering thermally conductive silicone pads, thermal conductive grease/paste,thermally conductive graphite sheets, phase change materials, thermally conductive plastics, thermal gel , silicone foam, silicone-free thermal pads etc.We adhere to strict quality standards and provide customized solutions based on customer requirements. Our products are widely used in electronics, new energy, telecommunications, industrial control, and other fields, earning the trust of customers both domestically and internationally through our proven capabilities.


Thermal Gap Filler Offering Superior Softness and Thermal Conductivity to Enhance Cooling and Reliability of Electronic Assemblies 2

Products description


The TIF®100-65-11US  Series is an ultra-soft thermal interface material designed specifically to protect precision components that are extremely sensitive to mechanical stress. This product combines high thermal conductivity with exceptional gel-level softness, achieving a perfectly low-stress fit. It is suitable for addressing issues such as large tolerances, uneven surfaces, and the susceptibility of precision components to mechanical damage in high-precision assemblies.


Features

> Good thermal conductive 6.5W/mK
> Broad range of hardnesses available
> Outstanding thermal performance
> High tack surface reduces contact resistance
> RoHS compliant
> UL recognized

Applications

> Embedded Motherboard
> Industrial visual inspection equipment
> Graphics card cooling module
> Charging pile power module
> Central control screen
> Home appliance industry
> Power module
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics

Key attributes


Typical Properties of TIF®100-65-11US Series
Property Value Test method
Color Dark Gray Visual
Construction & Compostion Ceramic filled silicone elastomer ******
Density(g/cm³) 3.45 ASTM D792
Thickness Range(inch/mm) 0.010~0.020 0.030~0.200 ASTM D374
(0.25~0.50) (0.75~5.00)
Hardness 65 Shore 00 20 Shore 00 ASTM 2240
Recommended Operating Temperature -40 to 200℃ ******
Breakdown Voltage(V/mm) ≥5500 ASTM D149
Dielectric Constant @1MHz 7.0 ASTM D150
Volume Resistivity(Ohm-meter) >1.0X1012  ASTM D257
Flame rating V-0 UL 94 (E331100)
Thermal conductivity(W/m-K) 6.5 ASTM D5470
6.5 ISO22007



Product Specifications


Standard Thickness:0.010" (0.25 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm).
Standard Size: 16" X16” (406 mm X406 mm).


Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).


The TIF®series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.

High Reliability And Stability Thermal Conductive Gap Filler Pads Ideal For Heat Dissipation In Electronic And Industrial Equipment 1


Packaging Details & Lead time


The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized


Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated

Thermal Gap Filler Offering Superior Softness and Thermal Conductivity to Enhance Cooling and Reliability of Electronic Assemblies 1


Our services



Online-service : 12 hours , Inquiry reply within fastest.


Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).

Well-trained & experienced staff are to answer all your inquiries in English of course.

Standard Export Carton Or Marked With Customer's Information Or Customized.

Provide free samples



After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.

we will help you to deal with it and give you satisfactory solution.



FAQ



Q:How can we get detailed price list?

A:Please offer us detailed information of the product such as Size(length,width,thickness),color,specific packaging requirements and purchasing quantity.


Q: What kind of packaging you offer?

A: During the packaging process, preventive measures will be taken by us to assure that the goods are in a good condition during storage and delivery.


Q:Do big buyers have promotional prices?

A: Yes, if you are a big buyer in a certain area, Ziitek will provide you with promotional prices, which will help you start your business here. Buyers with long-term cooperation will have better prices.
