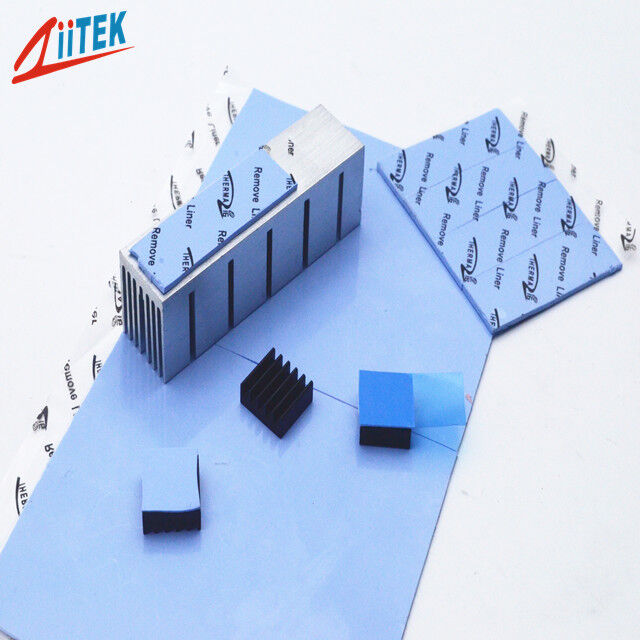

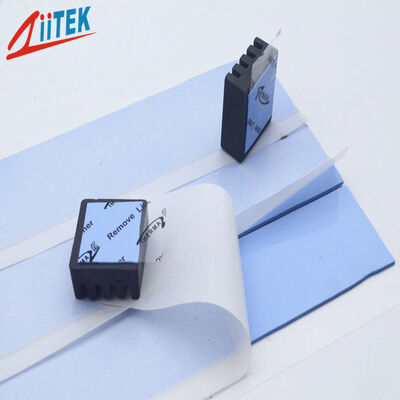

Light Blue High-Performance Silicone Gap Pads Ultra Soft Thermal Pad For Electronic Components 5G,Aerospace, AI
Products Description
TIF®100-30-23S Series is a well-balanced, general-purpose thermal pad.It offers good thermal conductivity and moderate hardness. This balanced design provides both excellent surface conformity and superior ease of use, making it capable of effectively transferring heat and providing basic physical protection for a wide range of electronic components. It is an ideal choice for addressing medium to high power heat dissipation needs,achieving the best balance between cost and performance.
Features:
> Higt thermal conductivity
> Good softness and fillability
> Self-adhesive without the need for additional surface adhesives
> Good insulation performance
Applications:
> Electronic Components 5G,Aerospace, AI,
> AIoT, AR/VR/MR/XR, Automotive,Consumer Devices,
> Datacom,Electric Vehicle,Electronic Products,
> Energy Storage,Industrial, Lighting Equipment,
> Medical, Military, Netcom, Panel,
> Power Electronics,Robot,Servers,
> Smart Home,Telecom,etc.
| Typical Properties of TIF®100-30-23S Series |
| Property |
Value |
Test method |
| Color |
Light blue |
Visual |
| Construction & Compostion |
Ceramic filled silicone elastomer |
****** |
| Density(g/cm³) |
3.15 |
ASTM D792 |
| Thickness Range(inch/mm) |
0.010~0.020
(0.25~0.5)
|
0.030~0.200
(0.75~5.0)
|
ASTM D374 |
| Hardness |
65 Shore 00 |
45 Shore 00 |
ASTM 2240 |
| Continuos Use Temp |
-40 to 200℃ |
*** |
| Breakdown Voltage(V/mm) |
≥5500 |
ASTM D149 |
| Dielectric Constant |
5.0 MHz |
ASTM D150 |
| Volume Resistivity |
＞1.0X1012 Ohm-meter |
ASTM D257 |
| Thermal Conductivity(W/m.K) |
3.0 |
ASTM D5470 |
| Fire rating |
V-0 |
UL 94 (E331100) |
Product Specifications
Standard Thickness: 0.010" (0.25 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16"× 16" (406 mm×406 mm)
Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).
The TIF series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.
